VCV Rack Modules

Available to buy from the VCV Rack Module Library

Morphing Drum Modules

These 5 modules are emulations of the Prok Drum hardware modules.

Whilst there may be some minor differences, they are as close to the hardware as possible in software.

Patches made for hardware are completely compatible with these software modules.

The emulations also provide options to match the hardware such as 12 bit output, distortion resolution and CV range.

NOTE : The Editor application is NOT compatible with the VCV Drum Modules at this time. It is only compatible with actual hardware.

Bass Drum

The Bassdrum synthesis engine can take you anywhere from the simple 808 / 909 one oscillator bassdrum sound, to screaming hardcore kicks that combinine four oscillators, two waveshapers and a noise source. You want solid, it does solid. You want banging distorted harmonics you get them too. Use the X and Y controls to find your sweet spot or create ever evolving drums by morphing between patches.

Controls

  • X - Morph X
  • Y - Morph Y
  • Button - Change Quad

Inputs

  • X - Morph X
  • Y - Morph Y
  • Trigger - Trigger Sound

Outputs

  • Audio - Drum audio

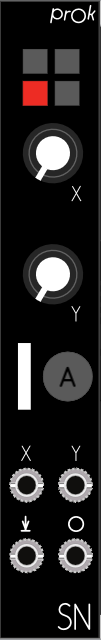

Snare Drum

Snappy stuff. Splashy things. Sounds a bit like the 808 and 909 but BETTER and does more than both combined. 2 oscillators and a specially crafted shift register based noise source. The 909 has one but this one is based on the famous SID chip. It also features variable sample rate so you can reach that sweet airy high noise as well as those low down digital dirty noise grains.

Controls

  • X - Morph X
  • Y - Morph Y
  • Button - Change Quad

Inputs

  • X - Morph X
  • Y - Morph Y
  • Trigger - Trigger Sound

Outputs

  • Audio - Drum audio

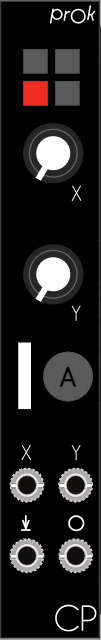

Clap

Take 3 noise sources - White, Pink and DIGI, mix them, waveshape them, run them through filters and special clap envelopes. Add a touch more filtering and some reverb. C C C CLAP. etc. There’s a huge variety of clap sounds available, from crispy X0X and Linn style to the tight RZ-1.

Controls

  • X - Morph X
  • Y - Morph Y
  • Button - Change Quad

Inputs

  • X - Morph X
  • Y - Morph Y
  • Trigger - Trigger Sound

Outputs

  • Audio - Drum audio

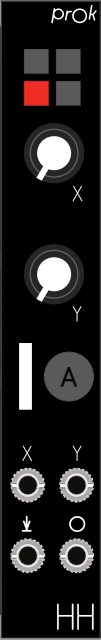

Hi Hat

Clicky sounds, metallic sounds. 6 square wave oscillators and a SID style noise generator are routed through a web of filters, envelopes and waveshapers. It can also make chords and drones or can be used as a weird noise source.

Controls

  • X - Morph X
  • Y - Morph Y
  • Button - Change Quad

Inputs

  • X - Morph X
  • Y - Morph Y
  • Trigger - Trigger Sound

Outputs

  • -

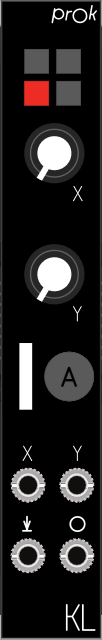

Klonk

General percussion synthesizer module. From rim to tom to all manner of weird and wonderful percussion sounds.

Controls

  • X - Morph X
  • Y - Morph Y
  • Button - Change Quad

Inputs

  • X - Morph X
  • Y - Morph Y
  • Trigger - Trigger Sound

Outputs

  • Audio - Drum audio

Drum Expander

Expander module that can be attached to the right hand side of any drum. Provides controls and modulation for Tuning, Decay and Quad Select.Now you can tune your drums (1v/Oct) easily. Make basslines with the Bass Drum, Slide the pitch your snare rolls. Play melodies with Klonk. The decay control can both shorten and lengthen the envelope decay times in each drum. Make them super tight and short, or make them long like a Gong. The Quad select section gives you an easy way to control or modulate the active quad in a module.

Controls

  • T - Tuning
  • D - Decay
  • Q - Quad Select

Inputs

  • T - Tuning (v/Oct)
  • D - Decay
  • Q - Quad Select

Morph Modes and Banks

Each bank of sounds on a drum module is made up of 16 individual patches.

These are laid out into 4 quads: A,B,C and D and 3 larger layouts : Horizontal Ribbon (H), Vertical Ribbon (V) and Large Square (L)

The first four quads are straightforward - one patch in each corner of the morph square.

The Horizontal ribbon is an 8x2 layout : 8 patches along the top X axis and 8 along the bottom X.

The Vertical ribbon is a 2x8 layout : 8 patches along the left Y axis and 8 along the right X.

The large square is all 16 patches in a 4x4 layout.

The ribbons and large square layouts place patches in different orders so that they each feature unique morph settings.

Each drum module comes with a number of alternative banks which you can load via the context menu.

Utility Modules

The collection also includes 10 modules based on the morphing modules internal architecture which enable you to build your own custom drum synthesizers (or indeed anything you can imagine, not just drums).

Includes specialised modules for Drum and Clap envelopes.

Custom noise generators with a specialised DIGI noise mode based on a shift register and more.

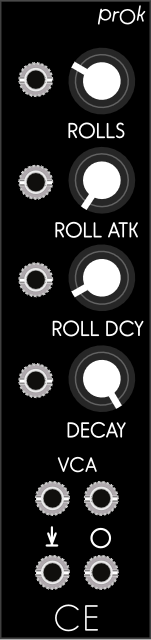

Clap Envelope

Clap Envelope Generator. Specially designed envelope to recreate the rapid-retrigger sound of a drum machine clap.

Controls

  • Rolls - Number of rolls at start of the clap sound
  • Roll Attack - Attack time for a single roll
  • Roll Decay - Decay time for a single roll
  • Decay - Final decay time

Inputs

  • VCA - Audio In
  • Trigger - Restart the envelope

Outputs

  • VCA - Audio from the input shaped by the envelope
  • O - Envelope signal output

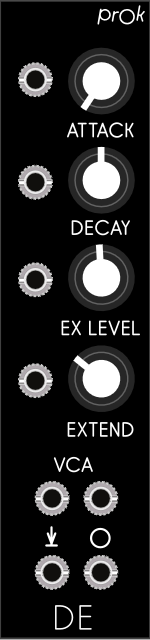

Drum Envelope

Envelope with Attack and 2 stage Decay. Perfect for shaping percussion envelopes.

Controls

  • ATTACK - Attack Time
  • DECAY - Decay Rate
  • EX LEVEL - Breakpoint level. Controls where the breakpoint starts within the decay stage
  • EXTEND - Decay stage 2 scaling. Extends (or shortens) the 2 part of the decay stage.

Inputs

  • ATTACK - Attack Time
  • DECAY - Decay Rate
  • EX LEVEL - Breakpoint level. Controls where the breakpoint starts within the decay stage
  • EXTEND - Decay stage 2 scaling. Extends (or shortens) the 2 part of the decay stage.
  • VCA - Audio input to shape with the envelope
  • Trigger - Restarts the envelope

Outputs

  • VCA - Audio shaped by the envelope
  • O - Envelope signal output

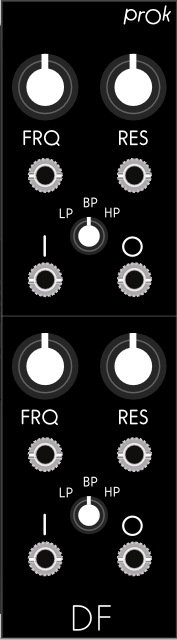

Dual Filter

Pair of resonant biquad filters with switchable Low Pass, Band Pass and High Pass modes.

Controls

  • FRQ - Filter Frequency
  • RES - Filter Resonance
  • LP/BP/HP - Filter type.

Inputs

  • FRQ - Filter Frequency
  • RES - Filter Resonance
  • I - Audio input

Outputs

  • O - Filtered audio output

Micro Mixer

5 Channel Mixer with volume for each channel.

Controls

  • Levels - Mix level

Inputs

  • 5 Signals - Any type of input

Outputs

  • O - Mixed output

Overtime

Distortion with bit depth and sample rate processing.

Controls

  • DIST - Distortion amount
  • BITS - Bit depth
  • RATE - Sample Rate

Inputs

  • DIST - Distortion amount
  • BITS - Bit depth
  • RATE - Sample Rate
  • I - Audio input

Outputs

  • O - Processed audio output

Quad Selector Expander

Control the current Quad from a knob or CV by placing this module on the right hand side of any drum module.

Controls

  • QUAD - Quad Select. Range is 0 to 6.

Inputs

  • QUAD - Quad Select. Range is 0 to 6.

Shifty Business

Shift register based random noise generator.

Controls

  • Rate - Rate of change
  • Slow/Fast - Choose between low speed output (control range) or high speed (audio range)
  • INT/EXT - Internal or External clock. With EXT selected the Rate controls have no effect.
  • UNI/BI - Unipolar (0 to 10) or Bipolar output (-5 to +5).

Inputs

  • RATE - Internal clock rate
  • CLOCK - External Clock / Trigger

Outputs

  • O - Module output

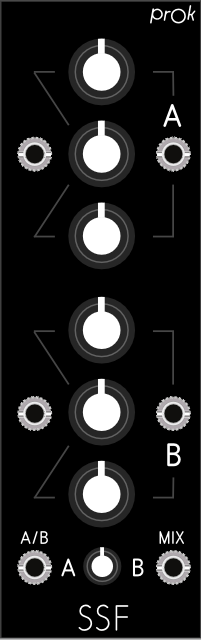

Six Square Feet

Two banks of 3 square wave oscillators. Each bank of 3 has a base frequency for the 1st oscillator and 2 ratios for the remaining oscillators.

Controls

  • OSC RATIO 1 - Ratio of oscillator 2 frequency to base
  • OSC BANK FREQUENCY - Base frequency for the bank of 3 oscillators
  • OSC RATIO 2 - Ratio of oscillator 3 frequency to base
  • MIX - Balance between bank A and B in MIX output

Inputs

  • BANK A BASE - Oscillator bank A base frequency
  • BANK B BASE - Oscillator bank B base frequency
  • A/B - Balance between bank A and B in MIX output

Outputs

  • A - Oscillator bank A only
  • B - Oscillator bank B only
  • MIX - Mixed output

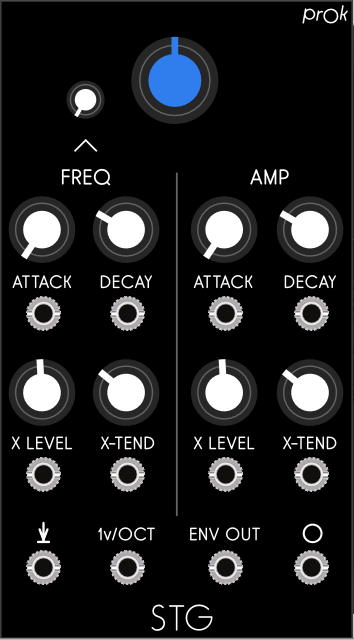

Skin In The Game

One oscillator with full 3 stage envelopes for both frequency modulation and amplitude. Ideal for crafting bass drums and adding a tonal layer to other drum sounds. 1v/Octave input is provided for easy tuning and melodic purposes.

Controls

  • Freq Attack - Freq env attack time
  • Freq Decay - Freq env decay time
  • Freq X LEVEL - Breakpoint level. Controls where the breakpoint starts within the decay stage
  • Freq X-TEND - Decay stage 2 scaling. Extends (or shortens) the 2 part of the decay stage.
  • Freq Env Amount - Amount of frequency envelope. 0 -> 4 khz
  • Amp Attack - Amp env attack time
  • Amp Decay - Amp env decay time
  • Amp X LEVEL - Breakpoint level. Controls where the breakpoint starts within the decay stage
  • Amp X-TEND - Decay stage 2 scaling. Extends (or shortens) the 2 part of the decay stage.

Inputs

  • Freq Attack - Freq env attack time
  • Freq Decay - Freq env decay time
  • Freq X LEVEL - Breakpoint level. Controls where the breakpoint starts within the decay stage
  • Freq X-TEND - Decay stage 2 scaling. Extends (or shortens) the 2 part of the decay stage.
  • Freq Env Amount - Amount of frequency envelope.
  • Amp Attack - Amp env attack time
  • Amp Decay - Amp env decay time
  • Amp X LEVEL - Breakpoint level. Controls where the breakpoint starts within the decay stage
  • Amp X-TEND - Decay stage 2 scaling. Extends (or shortens) the 2 part of the decay stage.
  • 1v/Oct - Oscillator frequency
  • Trigger - Restarts the envelopes

Outputs

  • ENV OUT - Amp Envelope signal
  • O - Audio

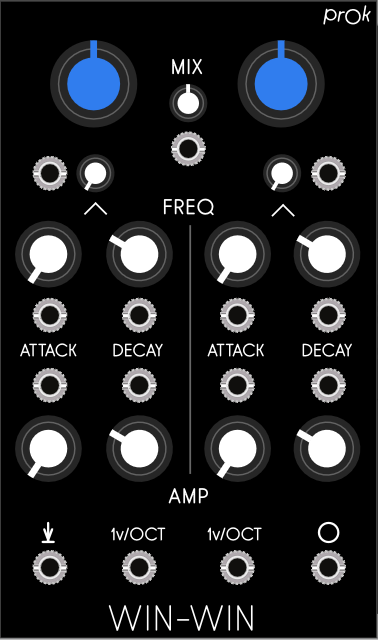

Win Win Situation

A pair of oscillators each with a frequency and amplitude envelope. The envelopes are slightly simplified with just attack and decay time controls. Perfect for creating snare and tom body sounds.

Controls

  • Oscillator Frequency - Oscillator frequency from X Hz to Y KHz
  • Freq Mod Amount - Freq env amount
  • Freq Attack - Freq env attack time
  • Freq Decay - Freq env decay time
  • Freq X LEVEL - Breakpoint level. Controls where the breakpoint starts within the decay stage
  • Freq X-TEND - Decay stage 2 scaling. Extends (or shortens) the 2 part of the decay stage.
  • Amp Attack - Amp env attack time
  • Amp Decay - Amp env decay time
  • Amp X LEVEL - Breakpoint level. Controls where the breakpoint starts within the decay stage
  • Amp X-TEND - Decay stage 2 scaling. Extends (or shortens) the 2 part of the decay stage.
  • Mix - Oscillator output balance

Inputs

  • Freq Mod Amount - Freq env amount
  • Freq Attack - Freq env attack time
  • Freq Decay - Freq env decay time
  • Amp Attack - Amp env attack time
  • Amp Decay - Amp env decay time
  • Mix - Oscillator output balance
  • Trigger - Restart all envelopes
  • 1v/Oct (x2) - Oscillator frequencies

Outputs

  • O - Audio output

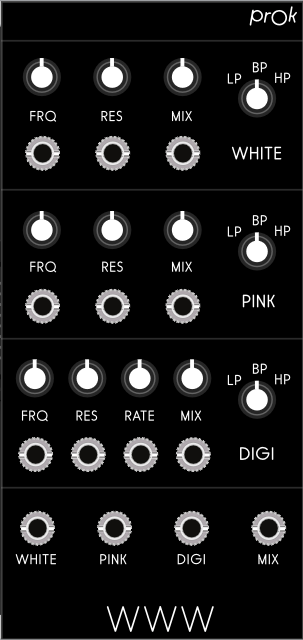

Whistle While You Work

Triple Noise Generator. Three flavours of noise - White, Pink and Digi each with their own resonant filter. Great for finely crafting snare, clap and hi hat noise layers.

Controls

  • FRQ - Filter Frequency
  • RES - Filter Resonance
  • MIX - Noise level in mix output
  • RATE - DIGI Noise sample rate
  • LP/BP/HP - Filter type.

Inputs

  • RES - Filter Resonance
  • MIX - Noise level in mix output
  • RATE - DIGI Noise sample rate
  • MIX - Oscillator output balance

Outputs

  • WHITE - White noise only
  • PINK - Pink noise only
  • DIGI - Digital noise only
  • MIX - Mixed noise output

Current Version : 1.0.4
